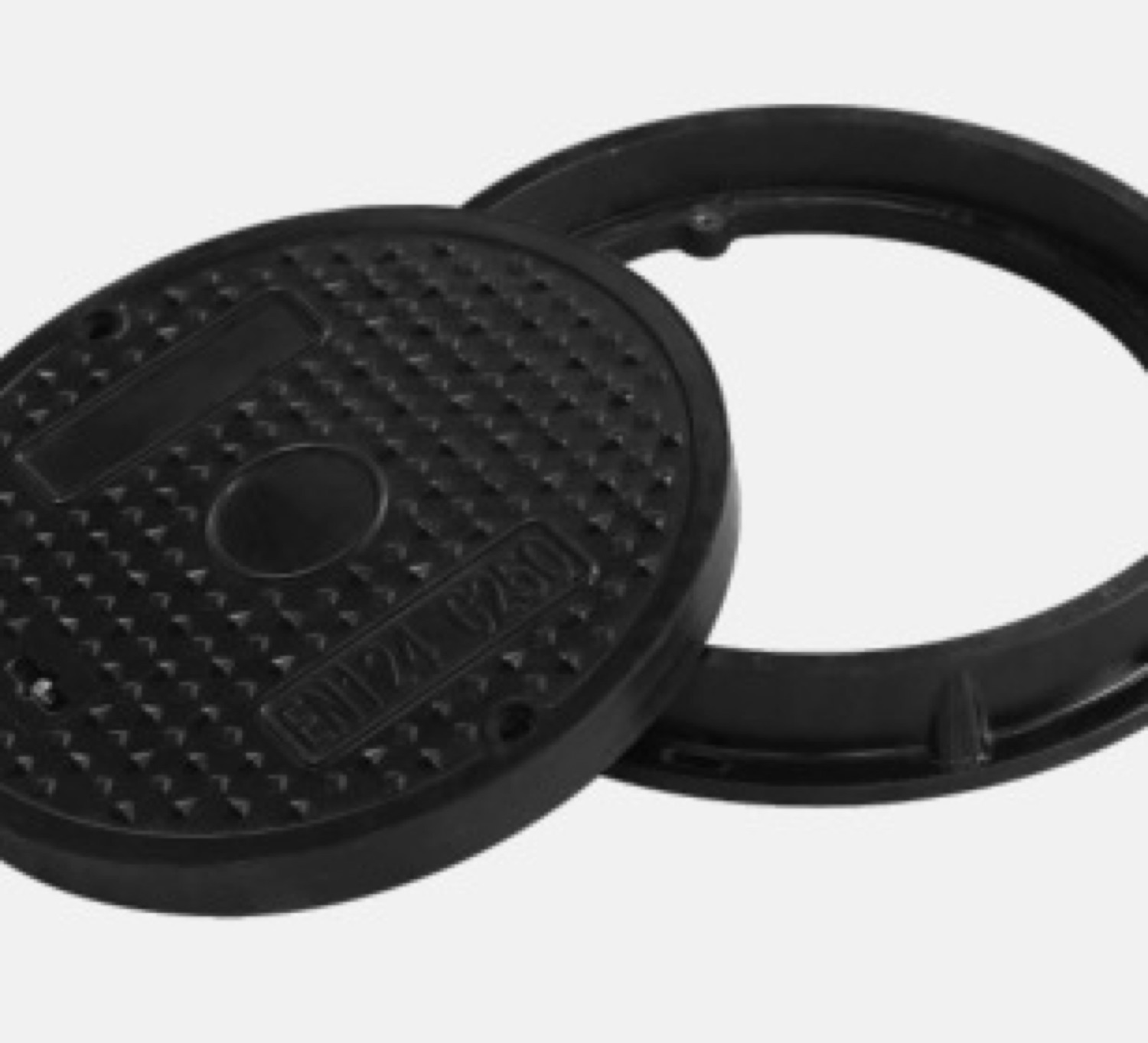

Name: NX-R round composite manhole cover
Brand: NEXUS
SKU: NX-R650
Availability: InStock

Why specify NX-R

Round covers are what most chambers need. This series is built around four details that decide whether a cover survives ten years of traffic.

Non-through lifting hole — operated with a standard T-key, cannot be hooked out of the frame.
Clamshell frame geometry — resists levering, which is how most theft attempts actually start.
Shock-absorbing rubber ring — silent under traffic, no rock in the frame, no rattle failures at inspection.
Diamond tread pattern — grip on wet and oily surfaces; relief depth up to 3 mm can be customised.
Moulded EN 124 marking — class, nominal size and your utility logo are in the tool, not painted on.

Specification — NX-R650

Dimensions in mm. O = clear opening, D = nominal size, F = frame outer, h = cover depth, H = total height.

Code	Load class	O	D	F	h	H	Weight
NX-R650A	A15	600	650	785	40	70	34.0 kg
NX-R650C	C250	600	650	785	40	85	41.0 kg
NX-R650D	D400	600	650	785	40	100	48.0 kg

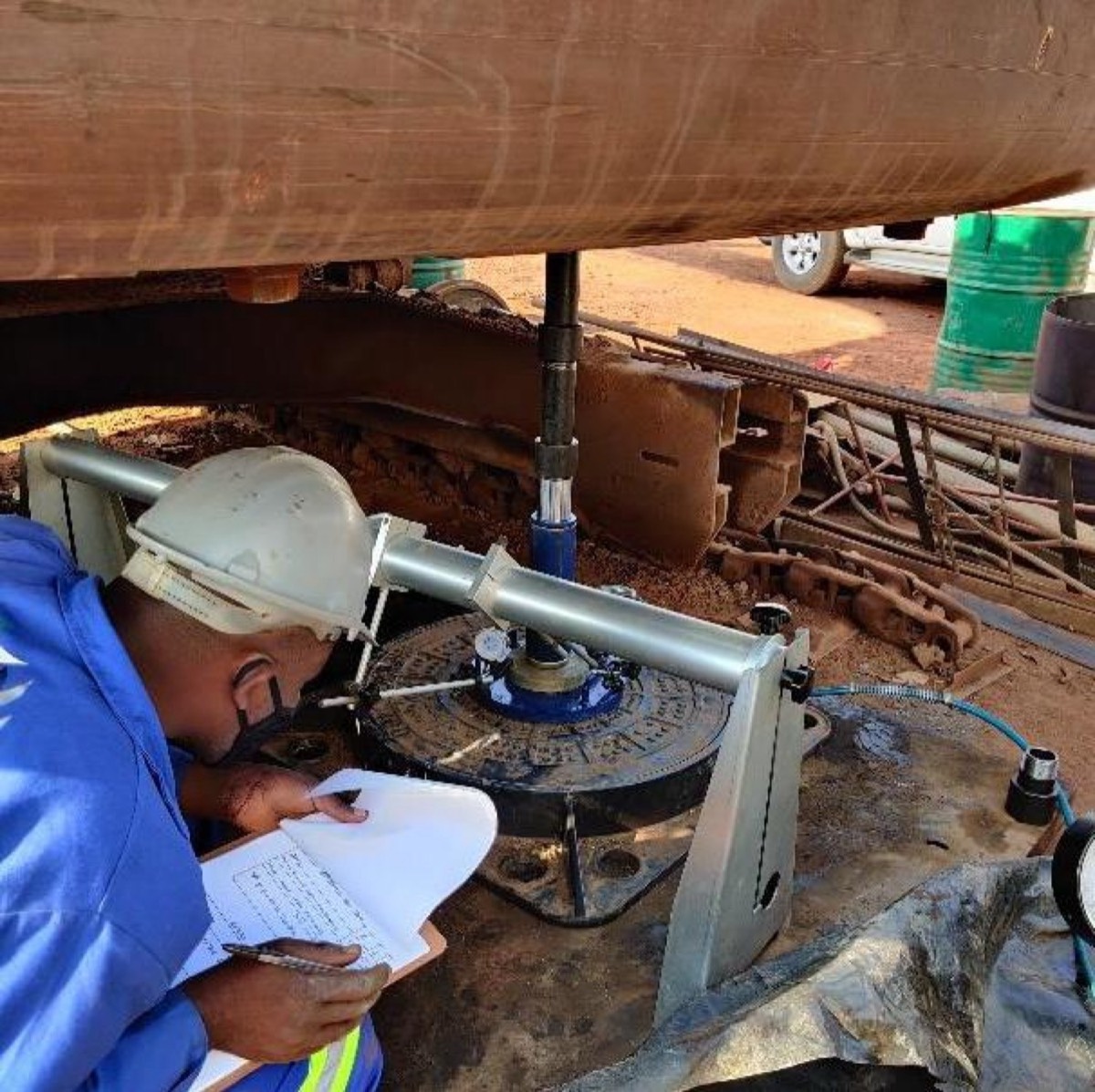

Load in accordance with EN 124:2015. Test reports available on request. Other diameters from 300 to 900 mm on request.

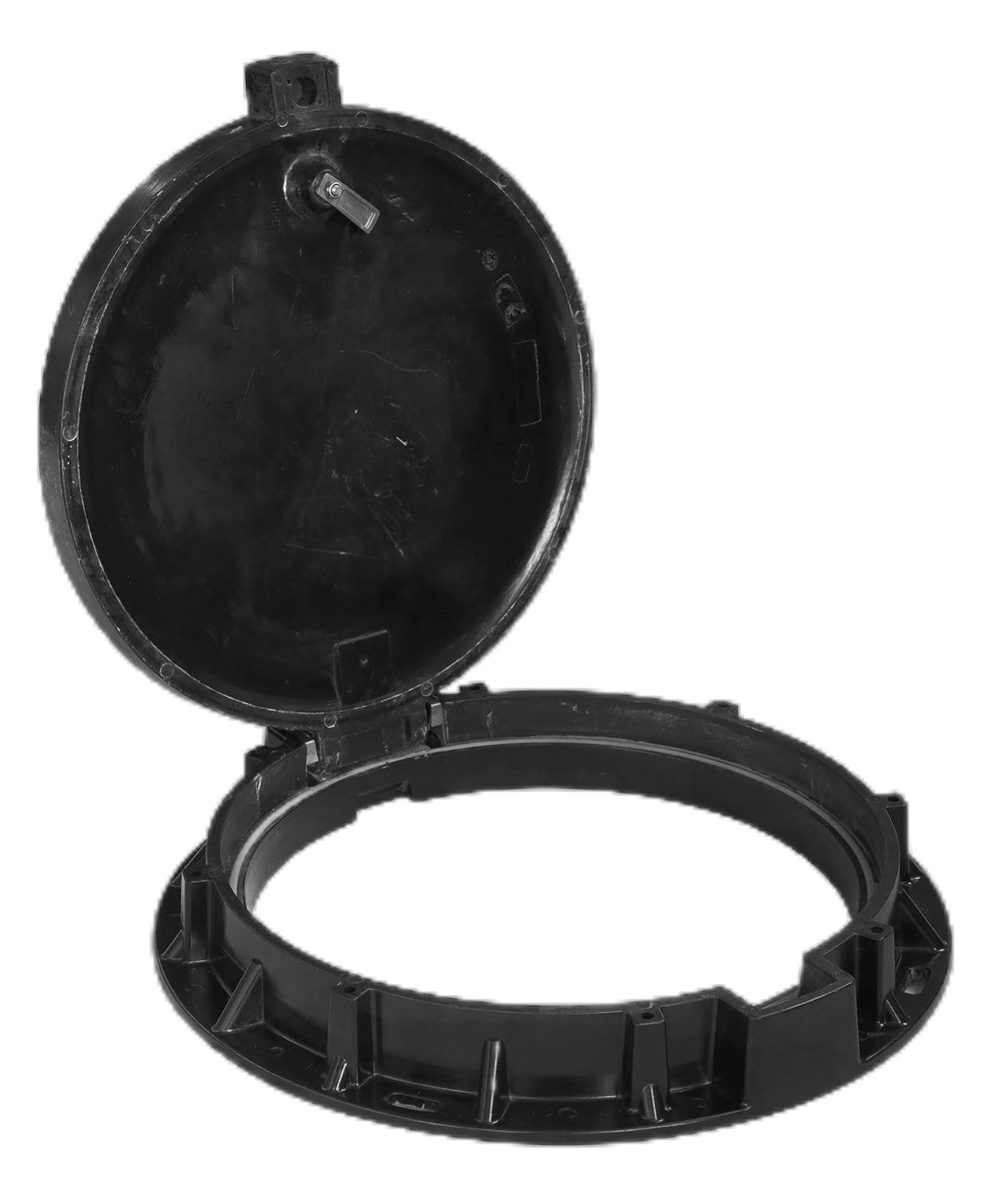

Screw lock · hinge · lifting eyes · rubber sealing ring · double-seal for odour control.

EN 124 class, nominal size, utility logo, QR or RFID tag.

25–35 days ex-works for standard sizes. FOB Qingdao or CIF to Gulf ports.

Not sure which class? A15 to F900 explained — the rule of thumb is simple: if a truck can reach it, you are at D400.
