Cable Management
FRP Cable Bearer
14 sizes - CB-FRP series.
14 sizes - CB-FRP series.

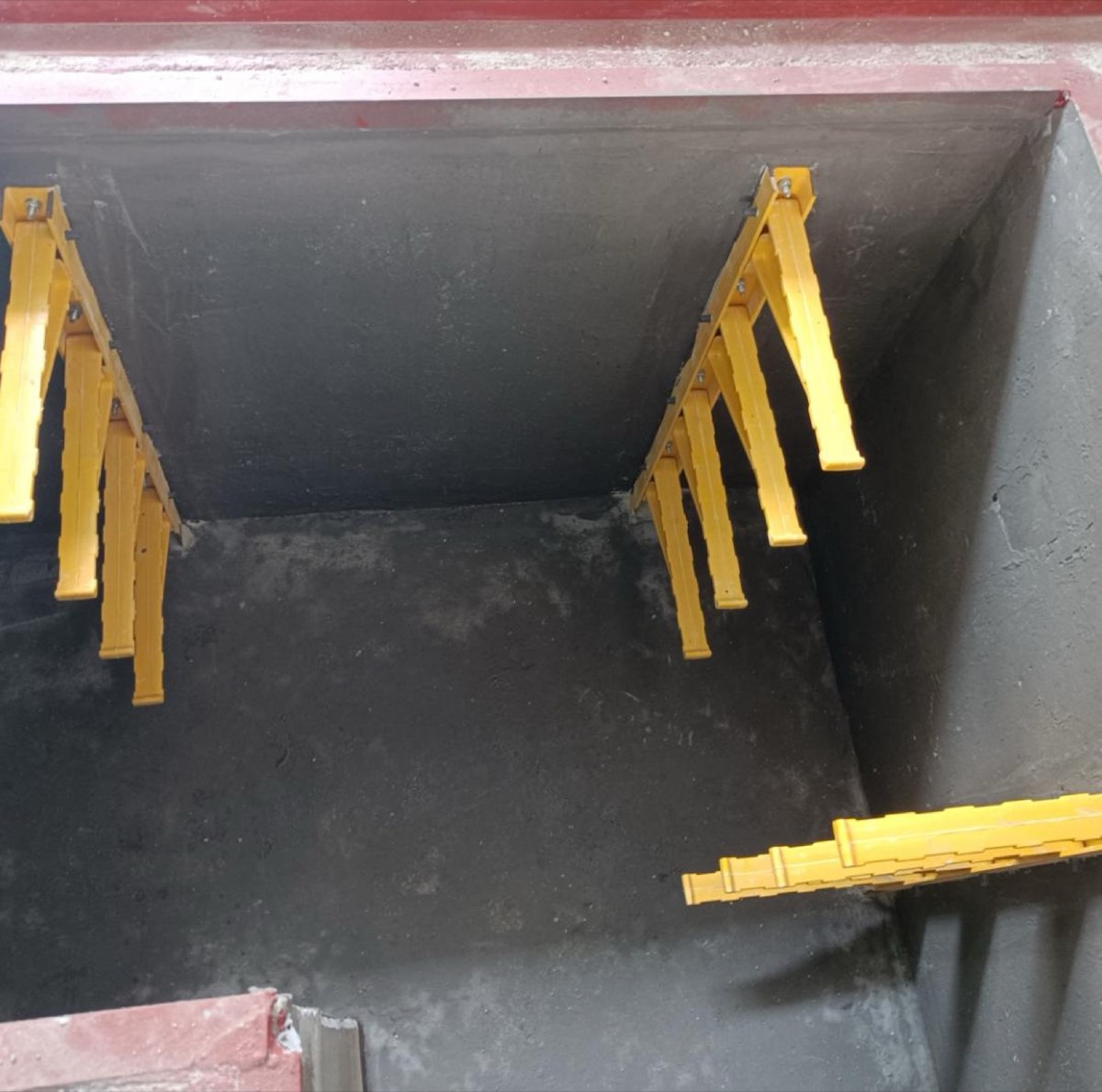

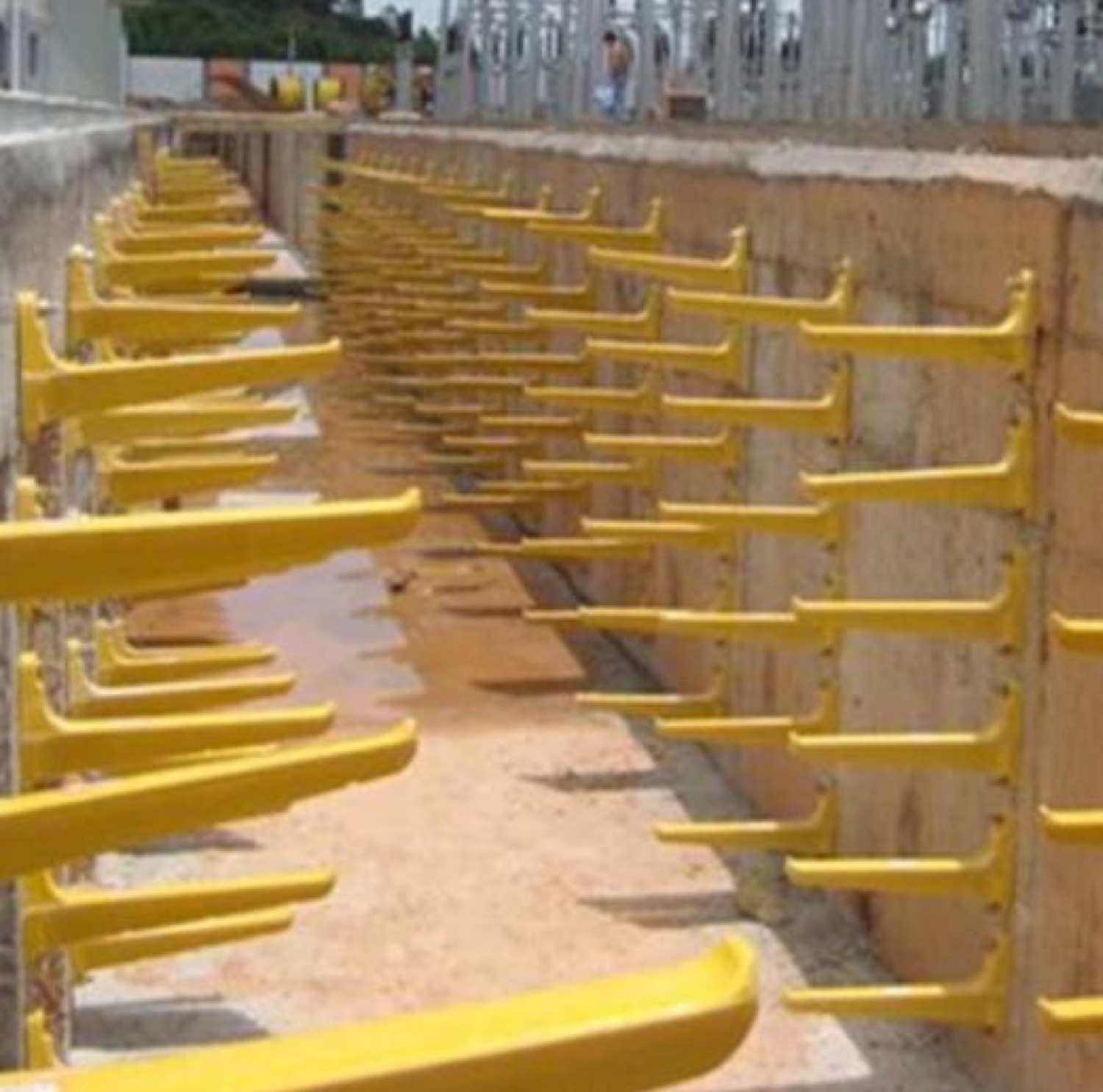

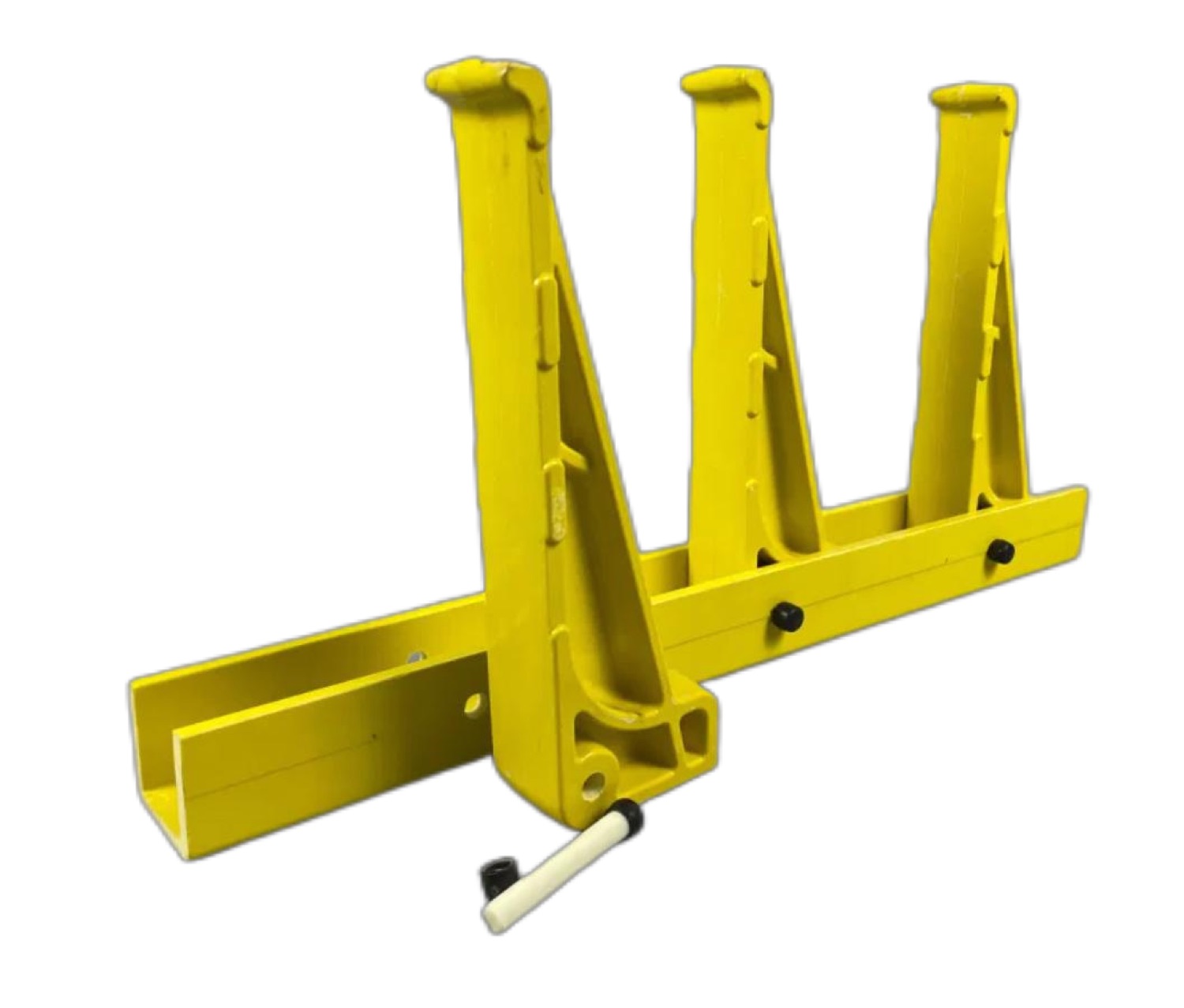

FRP cable bearers keep cables organized and protected. Ideal for chemical plants, wastewater facilities and marine settings thanks to high corrosion resistance, excellent electrical insulation and fire resistance.
| Product Code | Size | Weight |
|---|---|---|
| CB-FRP-200 | 200 mm | 0.34 kg |
| CB-FRP-250 | 250 mm | 0.40 kg |
| CB-FRP-300 | 300 mm | 0.43 kg |
| CB-FRP-350 | 350 mm | 0.54 kg |
| CB-FRP-375 | 375 mm | 0.65 kg |
| CB-FRP-400 | 400 mm | 0.57 kg |
| CB-FRP-425 | 425 mm | 0.70 kg |
| CB-FRP-450 | 450 mm | 0.67 kg |
| CB-FRP-500 | 500 mm | 0.80 kg |
| CB-FRP-550 | 550 mm | 0.84 kg |
| CB-FRP-600 | 600 mm | 1.30 kg |
| CB-FRP-700 | 700 mm | 1.32 kg |
| CBK-FRP-01 | Cable Bracket T=5.0 mm | 1.2 kg/m |
| CBK-FRP-02 | Cable Bracket T=6.5 mm | 1.5 kg/m |

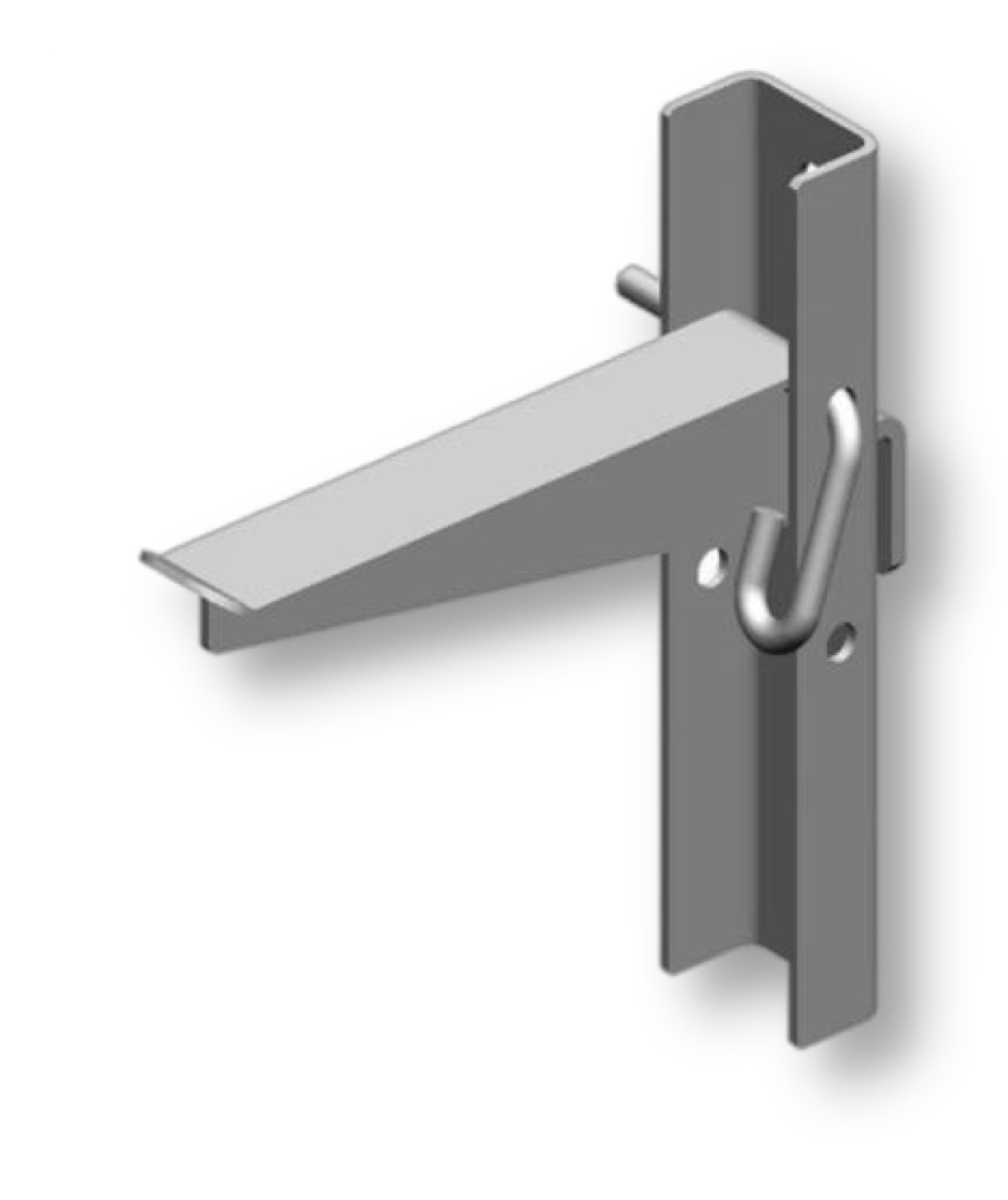

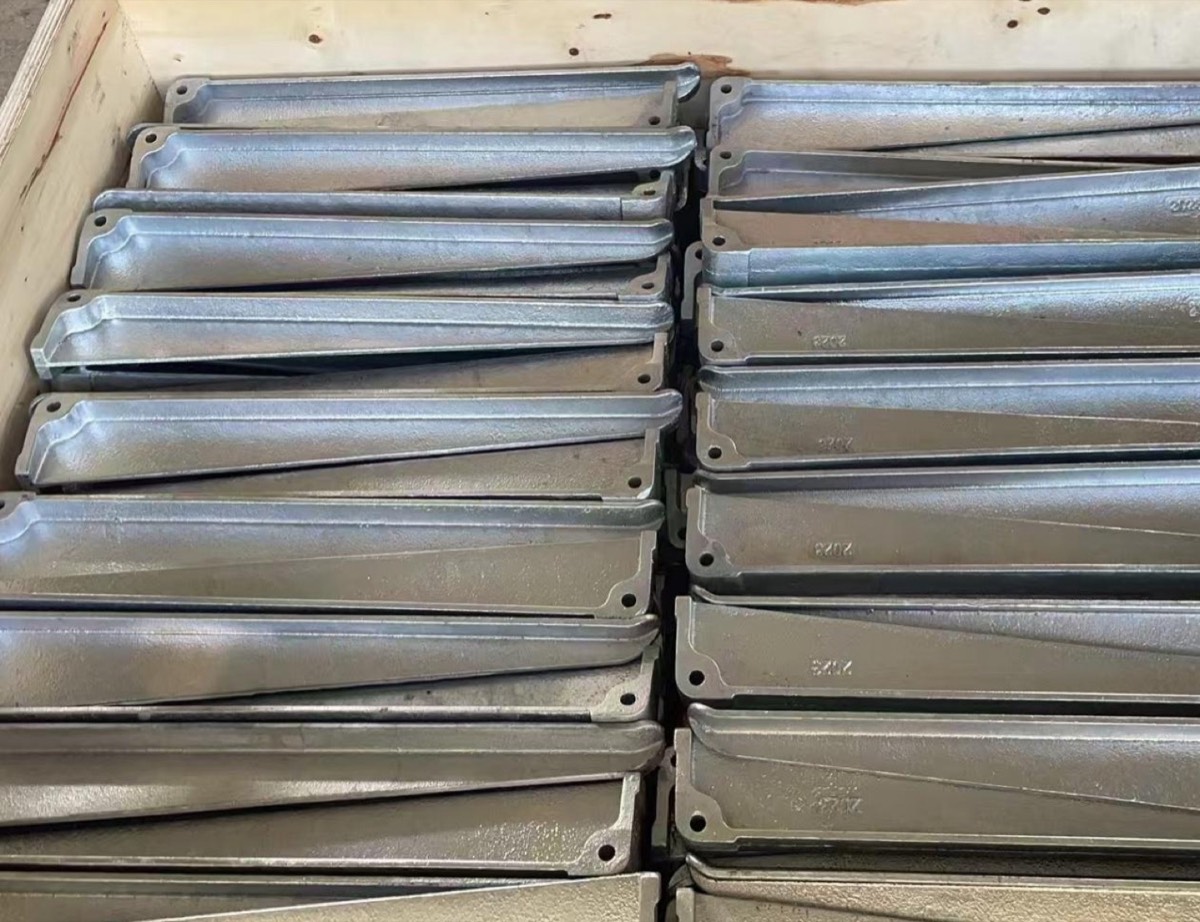

Manufactured from galvanized mild steel complying with BS EN ISO 1461:1999. Brackets are bolted to the chamber wall (bolts supplied); the wall-bearer design allows multiple bearers and flexible vertical positioning. Cables can be strapped securely to prevent movement and damage.
| Product Mode | Size | Weight |
|---|---|---|
| Cable Bearer No.8 | 240 mm | 0.52 kg |
| Cable Bearer No.12 | 340 mm | 0.60 kg |
| Cable Bearer No.18 | 500 mm | 0.70 kg |
| Channel Bracket Type 20 | 510 mm | 0.27 kg |
| Channel Bracket Type 48 | 1220 mm | 0.24 kg |
| Channel Bracket Type 60 | 1525 mm | 0.30 kg |
| Channel Bracket Type 75 | 1900 mm | 0.38 kg |

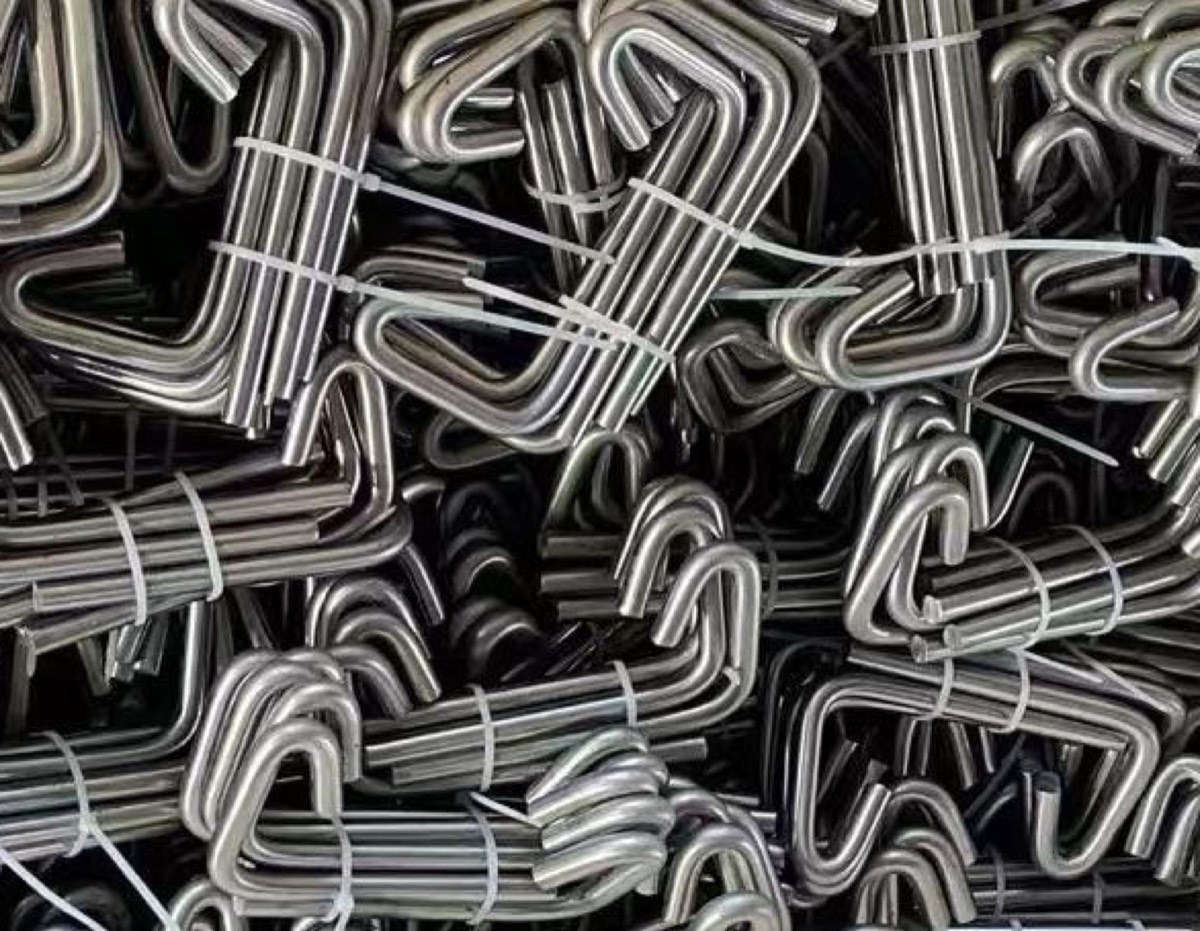

| Pin Locking Pin SS304 | / | 0.05 kg |
